Flatscan30®

FLATSCAN

PORTABLE X-RAY SCANNER

PERFORMANCE

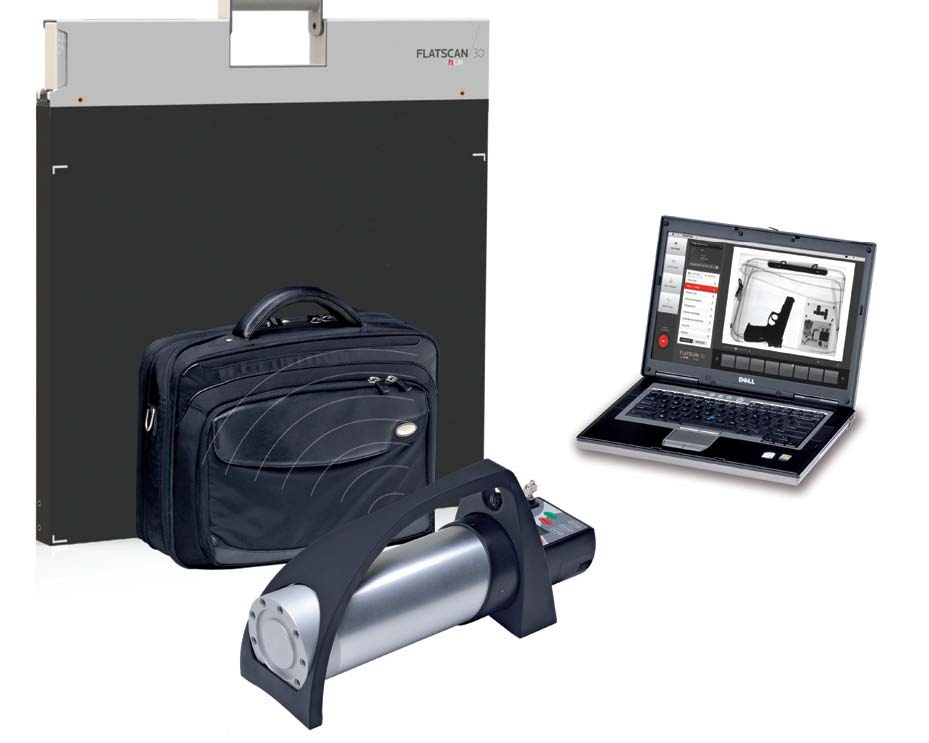

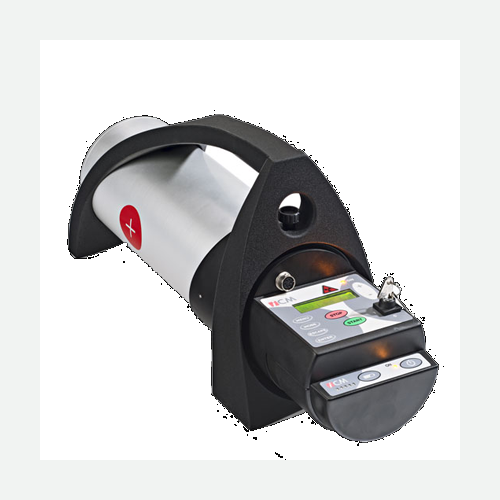

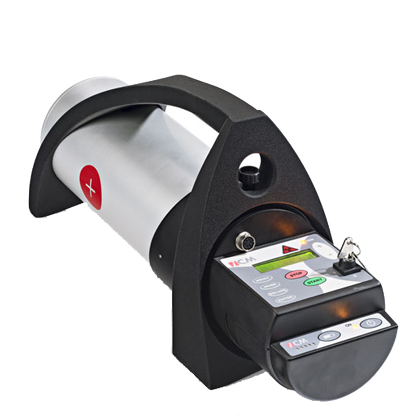

Operating in conjunction with our Constant Potential X-Ray sources CP120B orCP160B and their small focal spots, these innovative portable X-Ray scanner systems deliver you a sharp, clear and detailed image of any suspicious object that will assist your operators in ensuring immediate and accurate decision making. Featuring 50% more photodiodes and an ultrafast FPGA micro-controller technology, the FLATSCAN30 and FLATSCAN15 deliver a better image, are easier to use and more reliable in harsh RF environments than any other competing system.

LARGER ACTIVE AREA COMBINED WITH SMALLER OVERALL SIZES

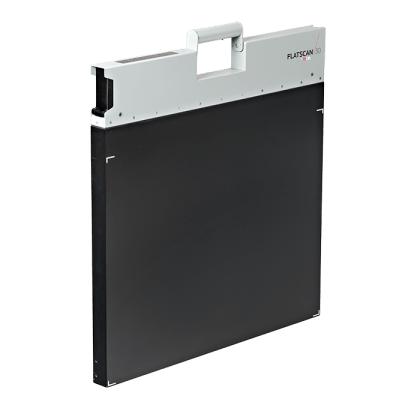

The FLATSCAN30 active zone has been increased to 30 inches (diagonal measurement) which enables inspections of a complete set of cabin luggage in just one scan and means that the operator need not expose himself or herself to any unnecessary threat. Furthermore, the FLATSCAN30 is now an exclusive ‘3-Edge’ system that allows objects to be fully scanned up to the extremes of the three FLATSCAN30 edges.

SMALL AND LIGHT IN WEIGHT

The FLATSCAN15 size and weight (it weighs just 3.5 kg) equip bomb disposal squads with the most user-friendly X-Ray imaging tool in terms of handling and transportation. Designed both for and according to the requirements of investigation teams, the FLATSCAN15 and our CP’s X-Ray sources offer the perfect portability and volume that are required for all standard inspections.

ENHANCED BATTERIES

Supplied with the very latest ‘free of memory effect’ Li-ion batteries, the FLATSCANs can now be used for many consecutive hours and capture approximately 500 images before a new charge is required. For convenience and to avoid any potential disruption, the FLATSCAN software continuously displays the remaining battery charge of both the FLATSCAN and the CP X-Ray source.

INNOVATIVE SOFTWARE

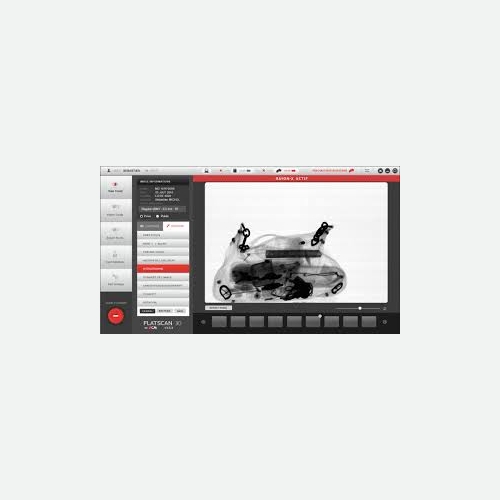

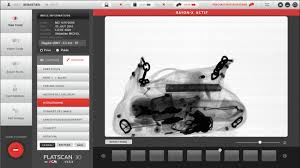

The FLATSCANs are delivered with a multilingual interface that enables the operator to both make and process images following just a few minutes of training. This enhanced software features straightforward function buttons that initiate hidden complex image processing. The thumbnail bar at the bottom of the screen is a particularly helpful tool that allows you to visualize the different images and their subsequent processes that are made during the entire operation. Meanwhile, a database storage system allows you to comment, store and retrieve or transfer images in a highly intuitive manner.

MATERIAL DISCRIMINATION

Optional hardware and software enable the FLATSCAN15 and FLATSCAN30 to differentiate between organic and inorganic materials in a SINGLE image capture.
